化工卷盤在化學化工行業主要應用于化學化工原料的輸送、分發與灌裝，由于化學行業的特殊屬性，導致其對需求產品的要求相對較高
0

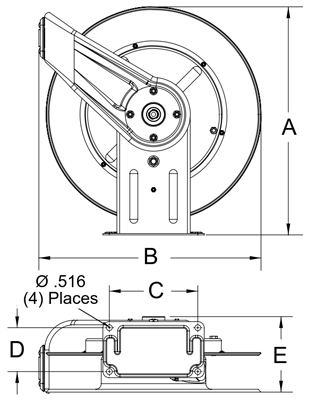

產品尺寸 | |
No. | 1 |
mm | |
A | 368 |
B | 349 |
C | 248 |
D | 64 |
E | 152 |
基座底部四個安裝孔徑是8.7mm | |

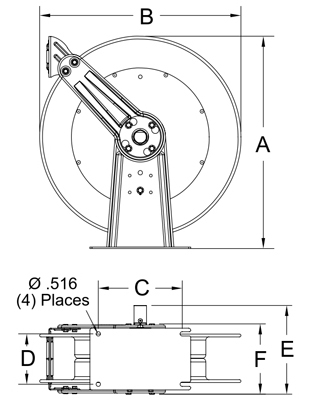

產品尺寸 | |
No. | 2 |
mm | |
A | 514 |
B | 502 |
C | 198 |
D | 98 |
E | 197 |
基座底部四個安裝孔徑是13.1mm | |

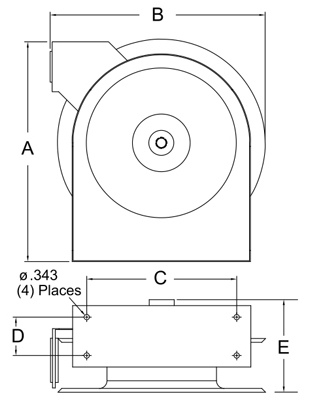

產品尺寸 | |
No. | 3 |
mm | |
A | 645 |
B | 610 |
C | 254 |
D | 152 |
E | 327 |
F | 206 |
基座底部四個安裝孔徑是13.1mm | |
型號 | 總重量 | 最大壓力 | 軟管內徑 | 軟管外徑 | 軟管出口 | 卷軸進口 | 軟管長度 | 尺寸 | 備注 | ||
kg | bar | mm | mm | NPT 外螺紋 | NPT 內螺紋 | m | |||||
LC600 OLS | 15 | 21 | 10 | 15 | 1/4 | 1/4 | 15 | 492 | 206 | 521 | 不配軟管 |
LC607 OLS | 16 | 21 | 10 | 15 | 1/4 | 1/4 | 21 | 492 | 206 | 521 | |
LC800 OLS | 15 | 21 | 13 | 19 | 1/2 | 1/2 | 15 | 492 | 206 | 521 | |
LC807 OLS | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 492 | 206 | 521 | |
5600 OLS | 10 | 21 | 10 | 15 | 3/8 | 3/8 | 11 | 356 | 156 | 365 | |
5600 OMS | 11 | 207 | 10 | 18 | 3/8 | 3/8 | 9 | 356 | 156 | 365 | |
7800 OLS | 19 | 35 | 13 | 19 | 1/2 | 1/2 | 15 | 502 | 178 | 514 | |
7600 OMS55 | 19 | 207 | 10 | 18 | 3/8 | 3/8 | 20 | 502 | 178 | 514 | |
7800 OMS | 20 | 207 | 13 | 22 | 1/2 | 1/2 | 15 | 502 | 178 | 514 | |
82000 OLS | 37 | 35 | 13 | 20 | 1/2 | 1/2 | 30 | 610 | 267 | 645 | |
82000 OMS | 38 | 104 | 13 | 21 | 3/4 | 3/4 | 23 | 610 | 267 | 646 | |
83000 OLS | 37 | 35 | 19 | 30 | 3/4 | 3/4 | 15 | 610 | 267 | 647 | |
83000 OMS | 38 | 86 | 19 | 30 | 3/4 | 3/4 | 15 | 610 | 267 | 648 | |
D83000 OLS | 38 | 35 | 19 | 30 | 3/4 | 3/4 | 23 | 610 | 267 | 645 | |
D84000 OLS | 42 | 35 | 25 | 38 | 1 | 1 | 15 | 610 | 267 | 646 | |
D9200 OLSBW | 52 | 35 | 13 | 20 | 1/2 | 1/2 | 30 | 667 | 305 | 670 | |
D9300 OLSBW | 53 | 35 | 19 | 30 | 3/4 | 3/4 | 23 | 668 | 305 | 670 | |
D9400 OLSBW | 53 | 35 | 25 | 38 | 3/4 | 3/4 | 15 | 669 | 305 | 670 | |
D9200 OMSBW | 54 | 207 | 13 | 21 | 1/2 | 1/2 | 23 | 670 | 305 | 670 | |
D9300 OMSBW | 54 | 207 | 19 | 30 | 3/4 | 3/4 | 15 | 671 | 305 | 670 |
